Building an 800+ HP S58: A G80 M3 Engine Build, Start to Finish

It didn’t let go on track. The owner of this G80 M3 — a weekend and track-day car with barely 5,000 miles when we first saw it — finished his track day, got on the highway home, and the engine put a connecting rod through the side of the block.

The engine was a stock S58 tuned well beyond factory output, with a port-injection kit added — but nothing inside had been reinforced. We’ll say plainly what we tell customers: we see a pattern in the failed engines that arrive at our shop, and aftermarket port injection on otherwise-stock internals is a recurring part of it. Some of that may be the tuning behind the kits rather than the hardware itself — and some of it is that the factory engine management can’t adequately monitor or protect a fuel system it doesn’t know exists. When something goes wrong on a port-injected setup, the DME may be the last to find out. Whatever the mechanism, the pattern is real. When this car arrived, the owner’s goal was simple to say and harder to do: build a replacement that can live with 800+ horsepower.

Starting with the right core

S58 cores for a nearly-new platform are genuinely hard to find — locating a good low-mileage engine took longer than any other step of this project. Once it landed, Gabe, our engine builder, tore it down completely: every bearing inspected, and the crankshaft sent to our local crankshaft support team — the same specialists who machine the billet crankshafts for our stroker kits — for magnaflux inspection. Their report came back “no repairs needed,” which is exactly what you want to read. Every component was measured before earning its place in the build.

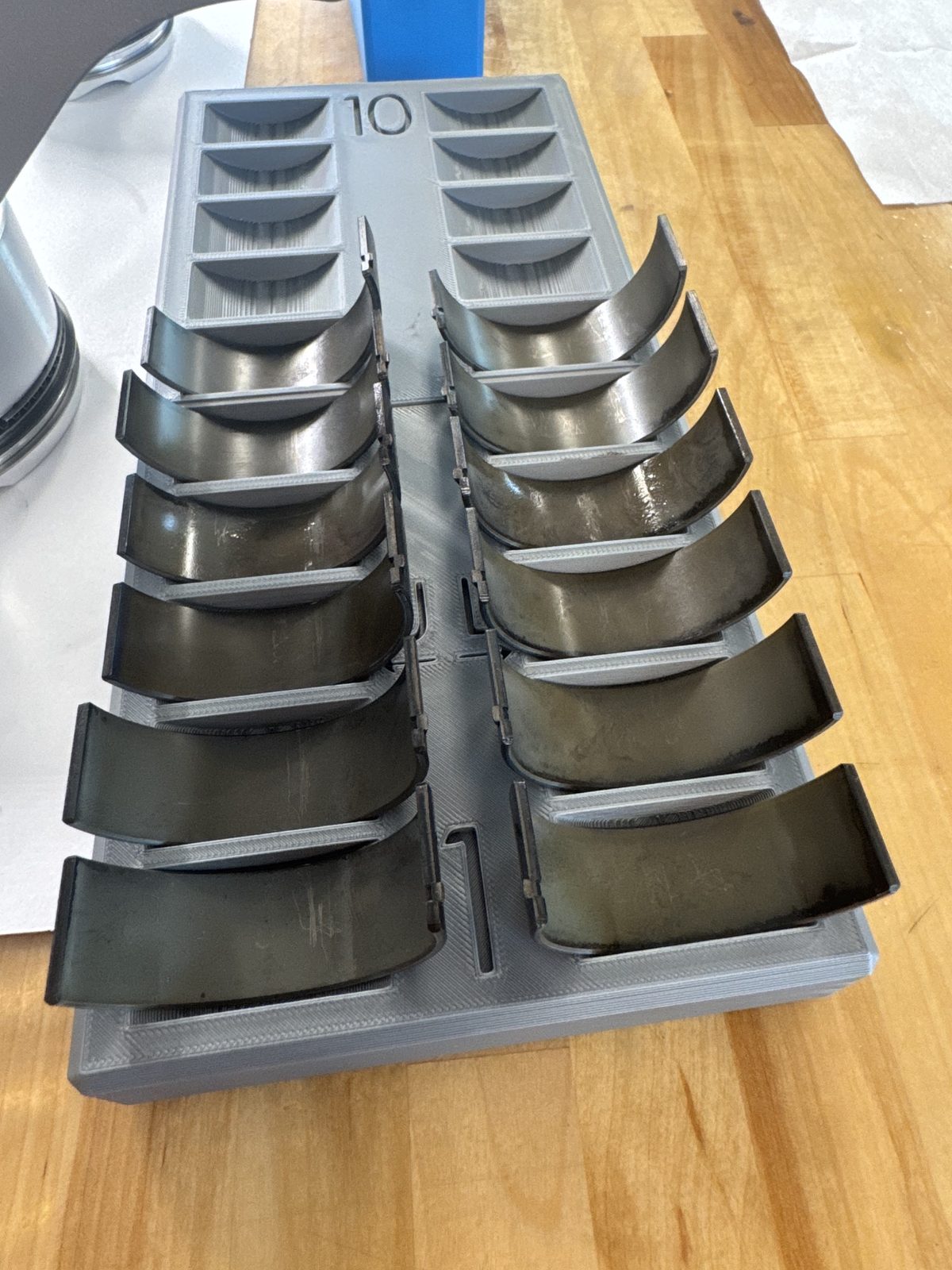

Teardown discipline: every bearing shell indexed in firing order in 3D-printed trays Gabe designed for the engine room.

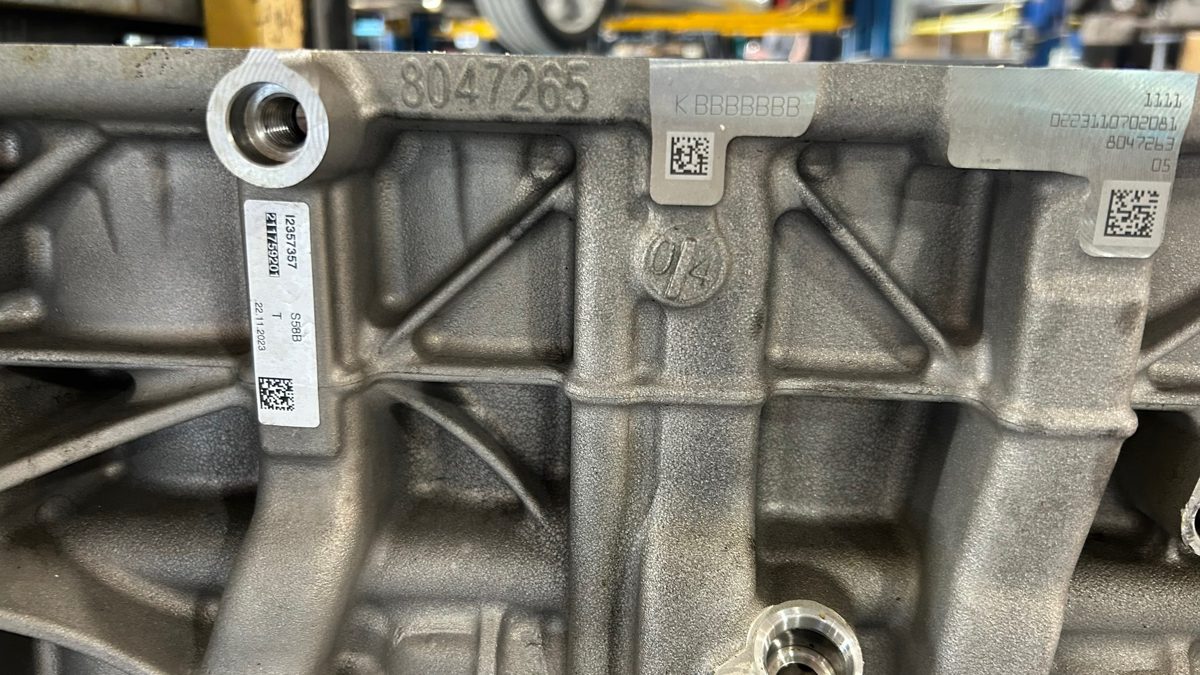

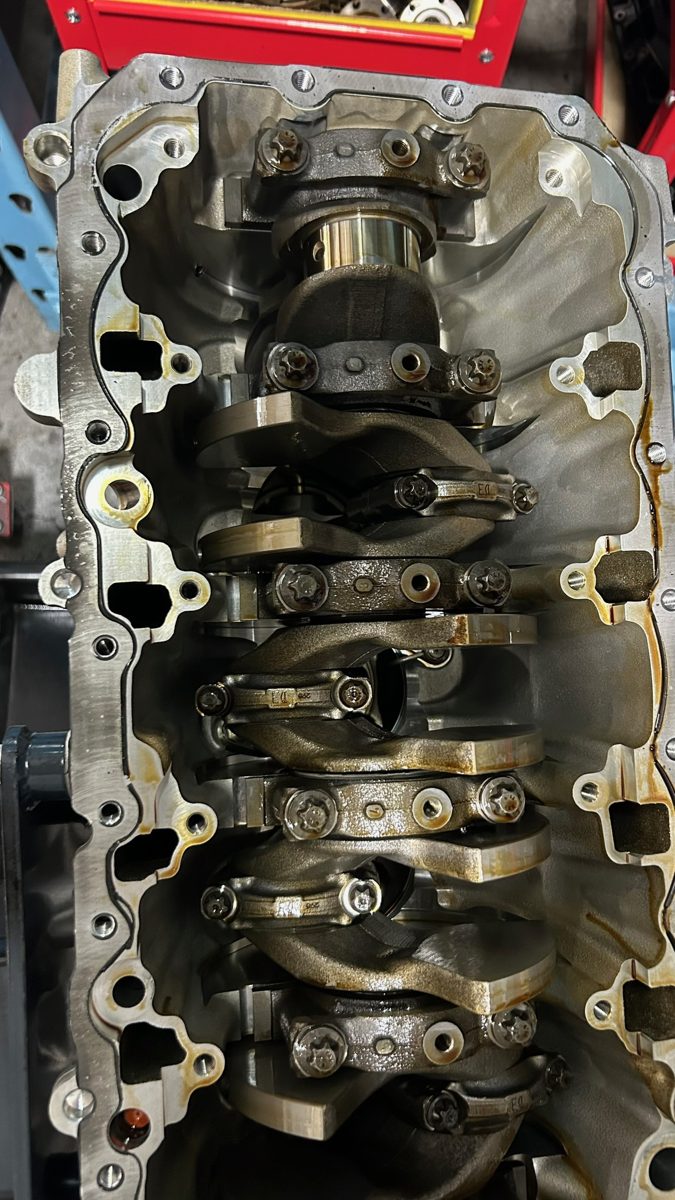

Left: casting numbers and factory date labels — on a platform this new, verifying exactly what you bought matters. Right: the bottom end as it came in, before anything was cleaned or measured.

One teardown find mattered: cleaning up a stock piston revealed a hairline fracture near the second ring land — invisible under the carbon. We’ve seen the same failure pattern before on the B58, the S58’s architectural cousin. The failed engine itself still awaits its full post-mortem; when it comes apart, we’ll publish exactly what we find.

The build sheet

“Bulletproof” is the word every customer uses. As Gabe told this owner directly: nothing is truly bulletproof — but at this power level there’s a clear recipe for a boosted engine:

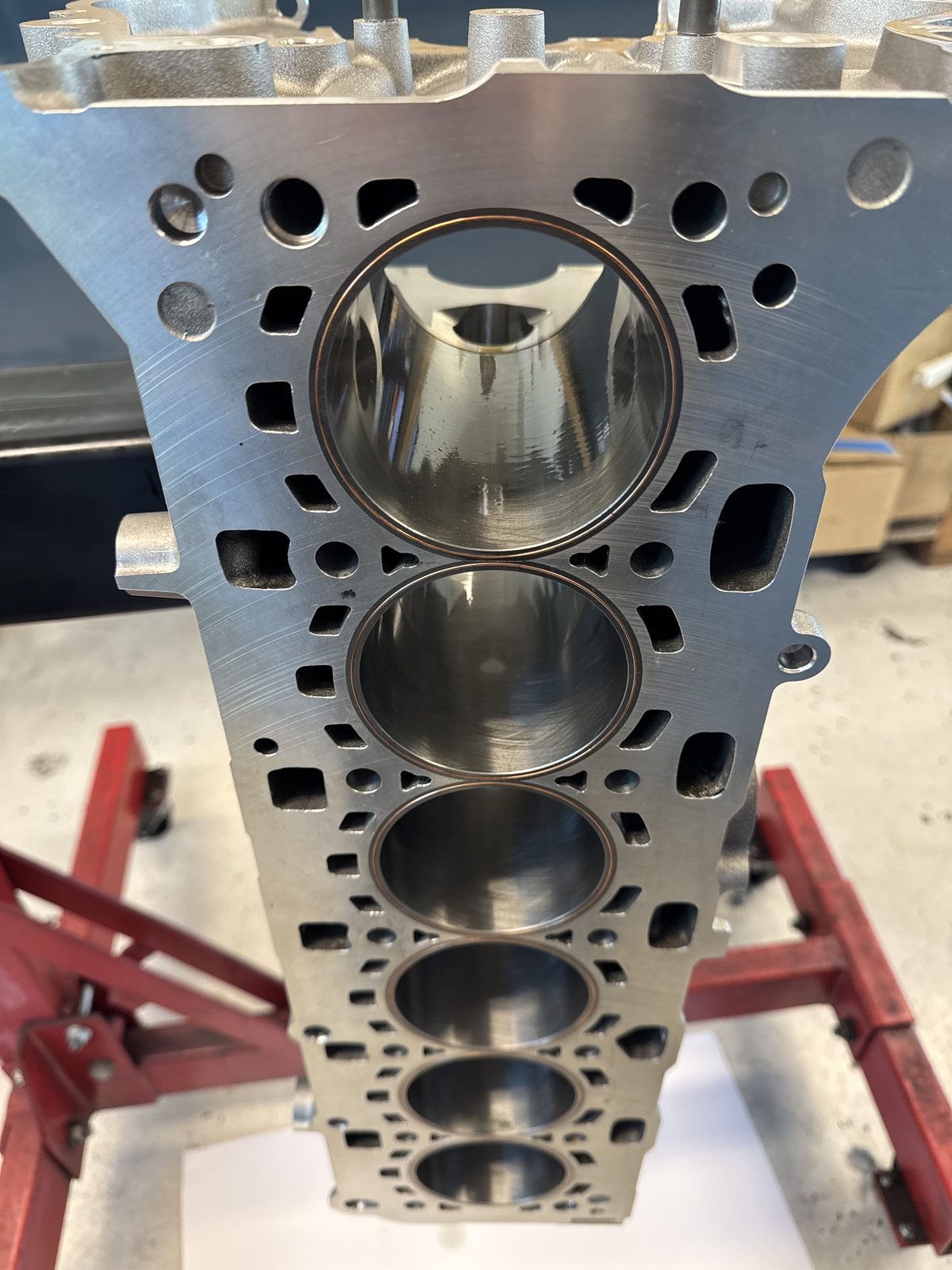

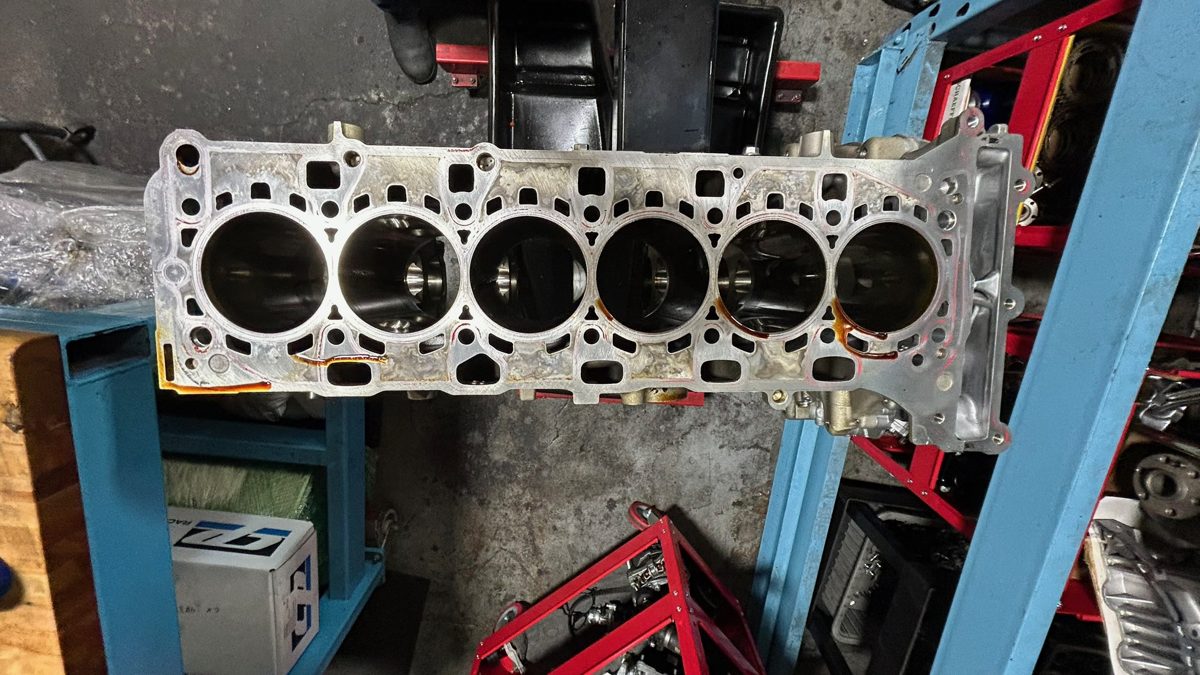

• Sleeved block — stronger cylinders, and freedom on piston choice.
• Copper O-rings + ARP head studs — machined into the block to hold head seal under serious boost. Combustion leakage past the head gasket is a failure mode we’ve repeatedly seen on pushed S55s and earlier engines.

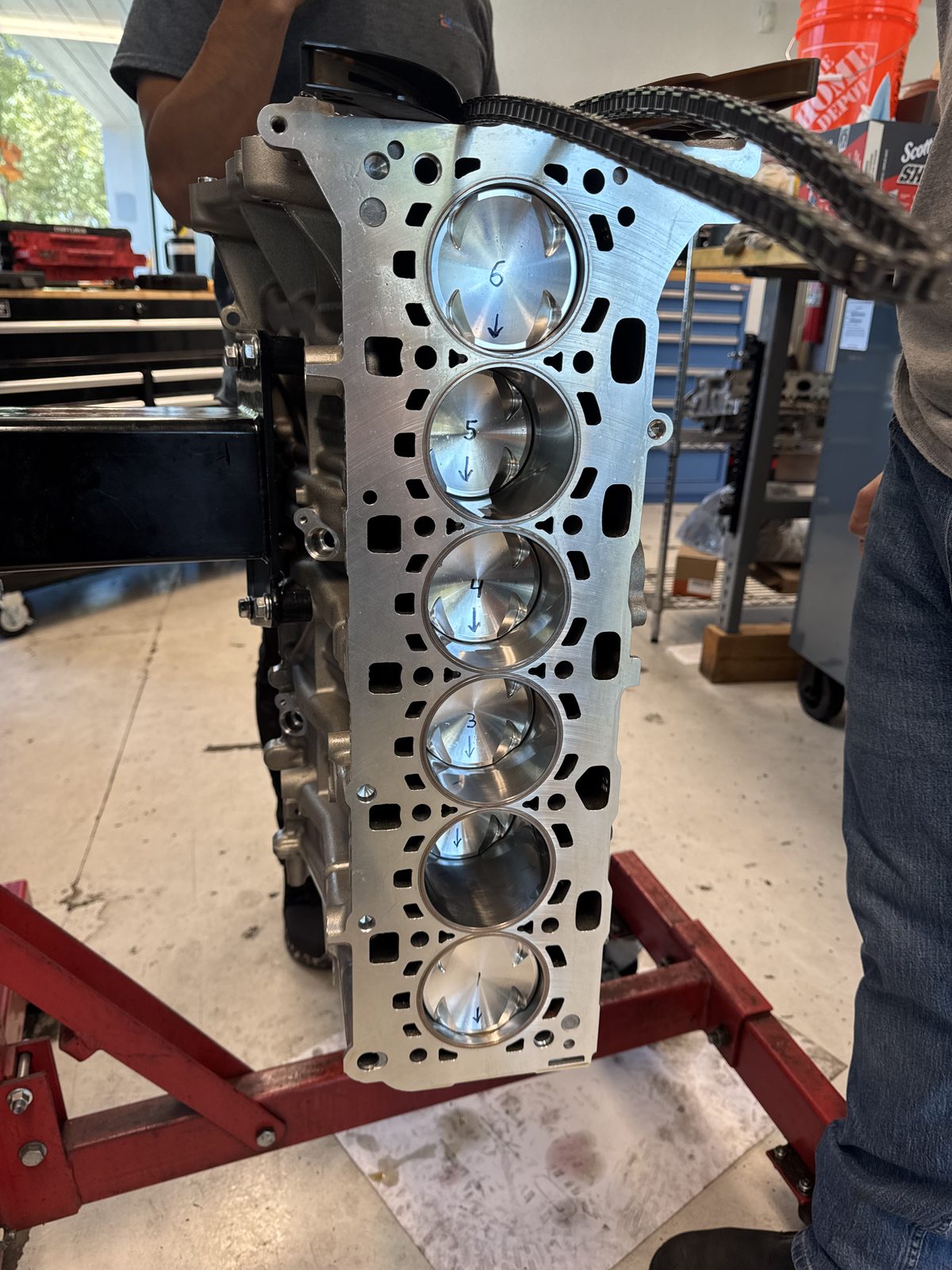

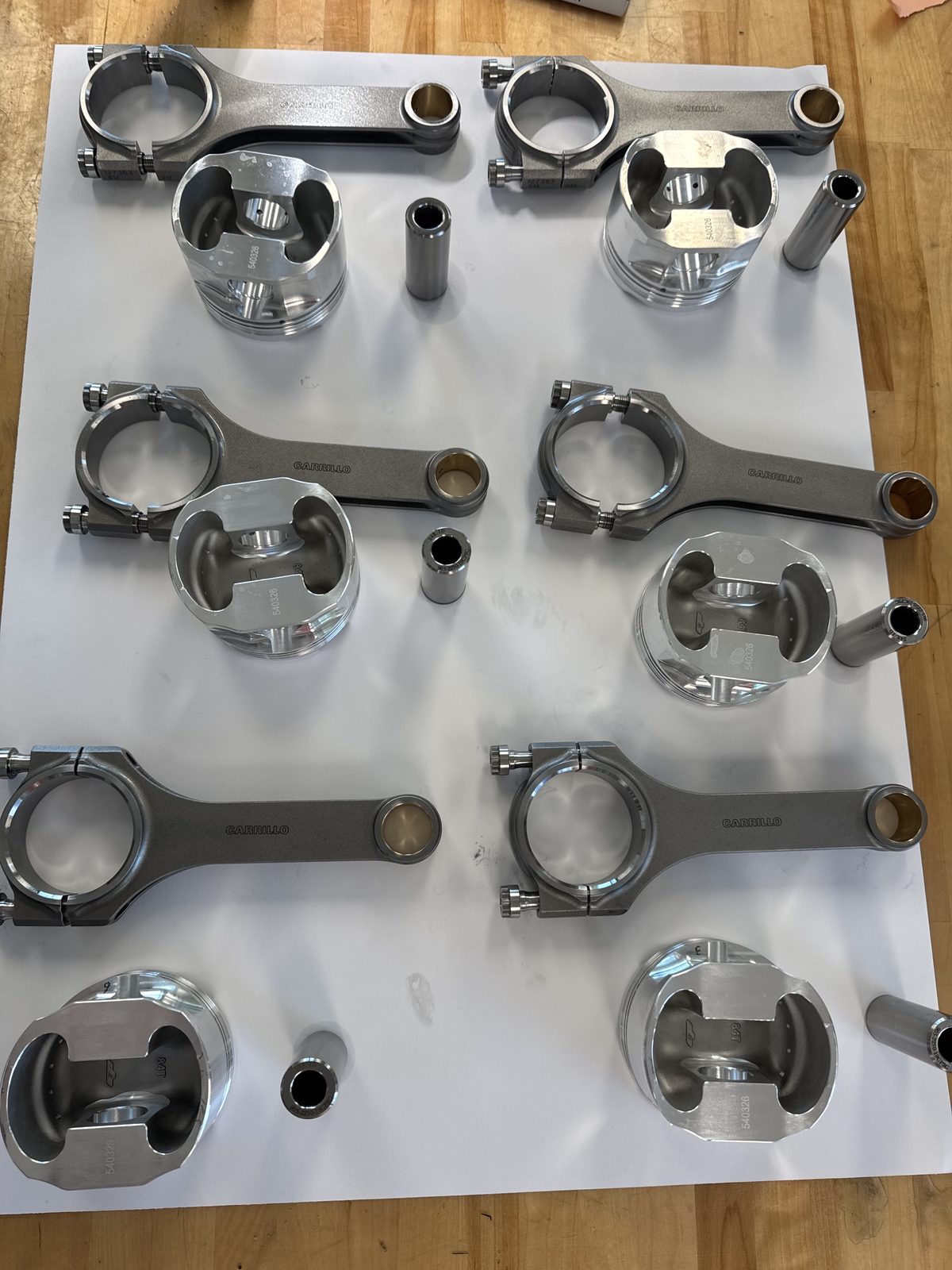

• CP-Carrillo forged pistons and rods — with ring lands and skirts specified for this application.
• Boost-appropriate compression — 8.9:1 with the CP pistons, computed from volumes Gabe physically measures, not takes on faith (more below).
• ACL rod bearings; ACL and BMW main bearings mixed per journal — chosen shell by shell to put every single journal exactly on its target clearance.
• Stage 1 cylinder head — rebuilt to spec; no porting needed for this combination.
• OEM gaskets and sealing throughout — the S58 relies on silicone sealing in many places, and we source sealing parts through BMW.

Supporting the driveline, the owner had the transmission and transfer case (this is the xDrive M3) rebuilt for the higher output as well.

Measured, not assumed

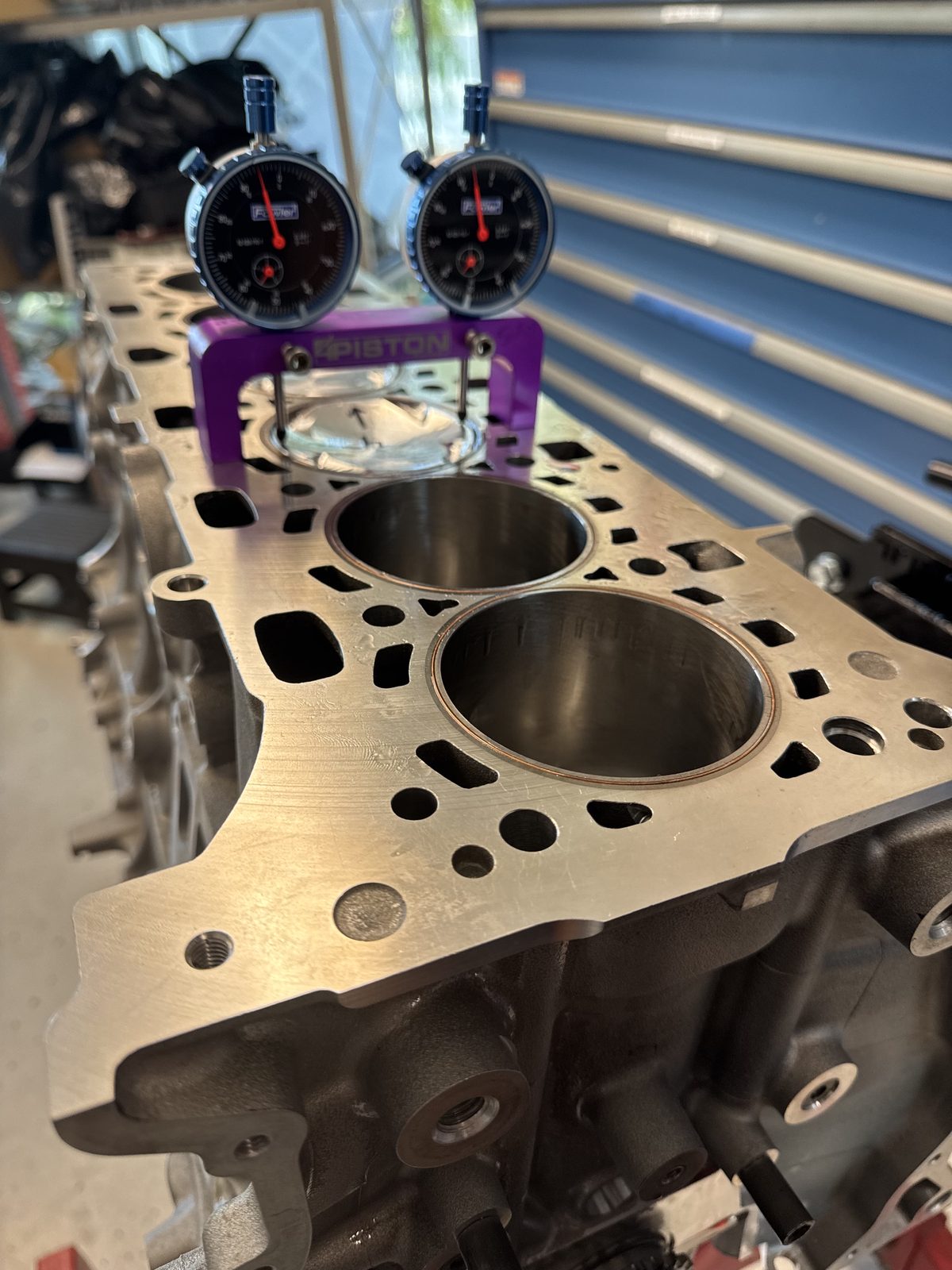

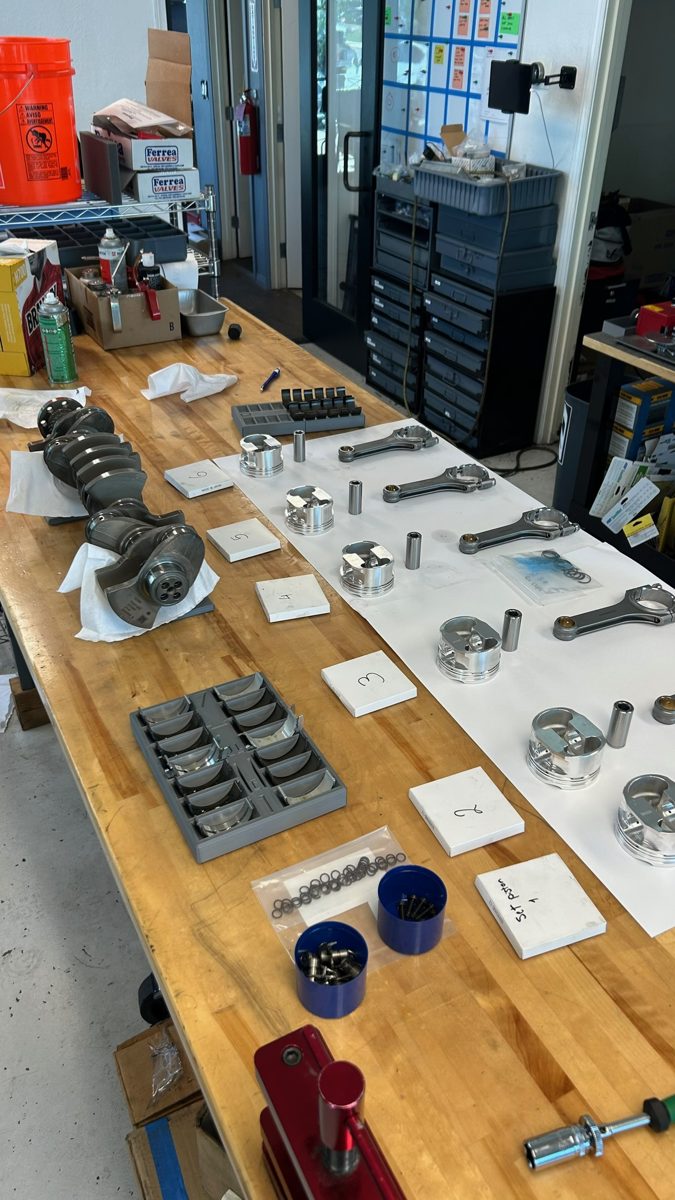

Every Lang Racing engine leaves with a build record — this one runs fifteen pages. A sample of what gets measured and written down, per engine:

That last line isn’t paranoia. On a previous job, customer-supplied pistons from a well-known vendor measured roughly 8:1 against the 10:1 the order called for — the vendor had simply plugged in numbers. We caught it because we measure. New piston designs get verified with liquid before the first build and re-verified until the vendor has earned trust.

What “documented” actually looks like

Every shop says it measures things. Here is what that means in our engine room, in practice: nothing goes into an engine straight out of a box, and nothing gets torqued without its number ending up on paper.

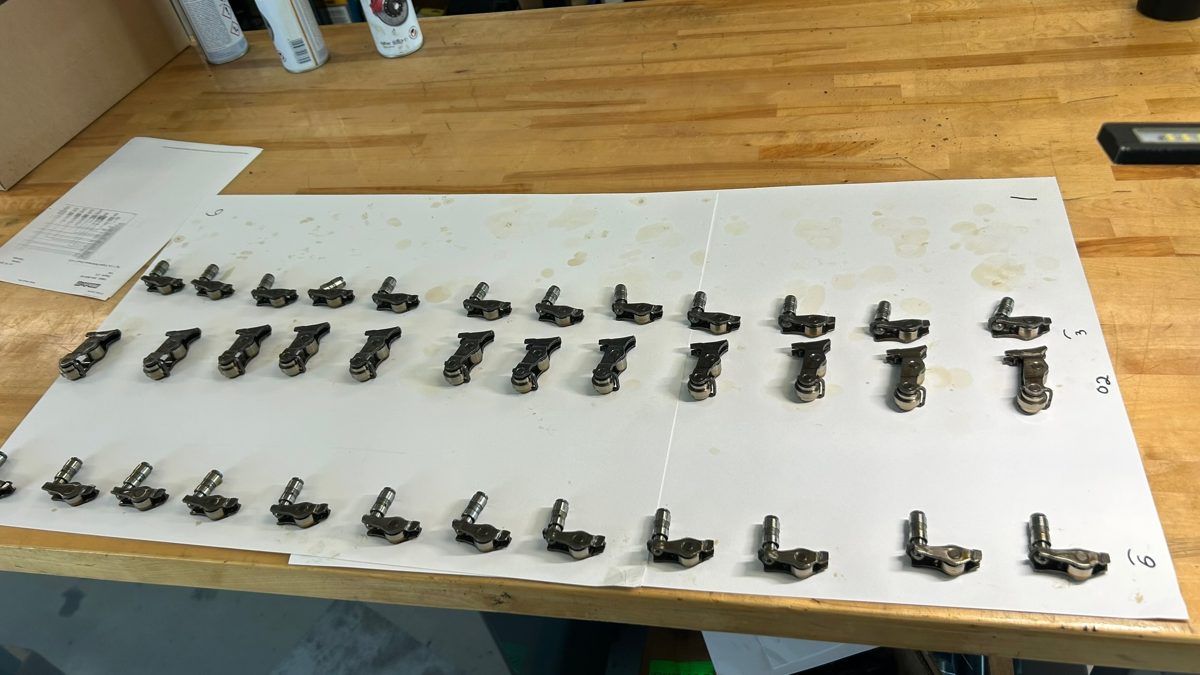

Fasteners get the same treatment. Rod bolts and cam cap bolts are laid out in position order, measured relaxed, then measured again stretched under torque — because a rod bolt’s stretch tells you far more about whether it’s doing its job than a torque wrench click does.

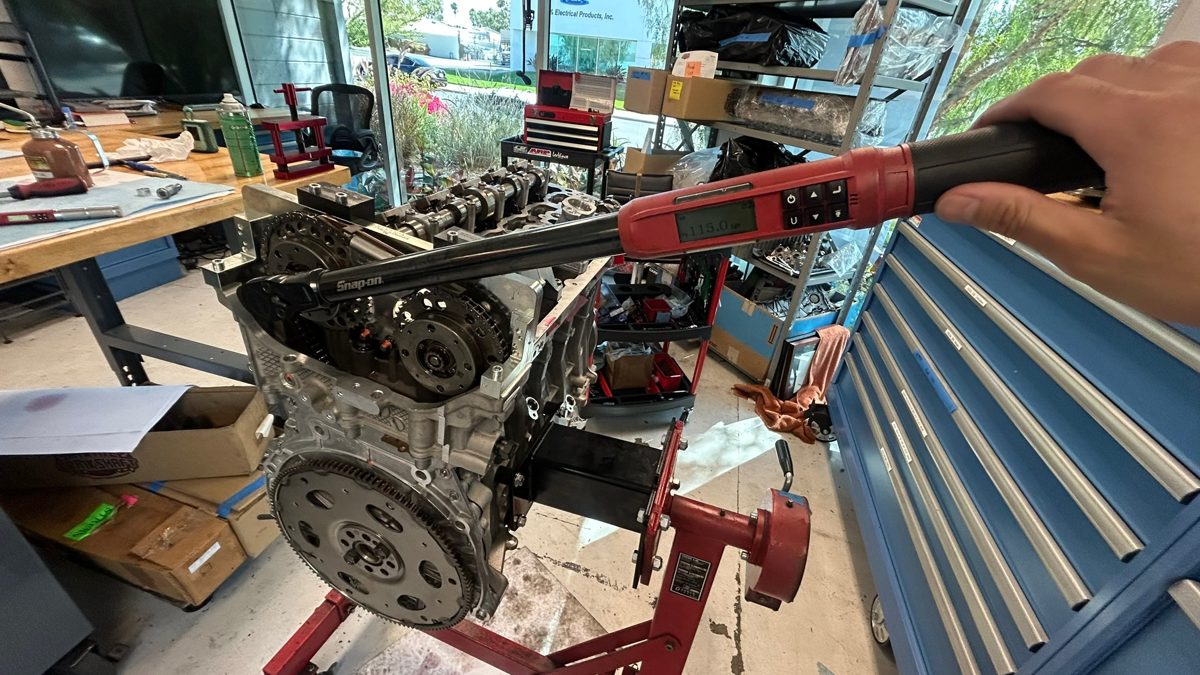

Left: every fastener in position order, so the bolt that came out of cylinder four’s rod goes back into cylinder four’s rod. Right: torque and angle captured as each fastener is pulled up.

None of this is glamorous, and it is most of what you are actually paying an engine builder for. It is also why we can answer a question about your engine three years from now: the record is on file for the life of the engine.

Why the S58 is a stronger starting point than the S55

With both engines on the bench, the design changes stand out:

Wider rod bearings. Hold a stock S58 rod next to an S55 or S54 rod — the big end and bearing surface are noticeably wider. More surface area, more load capacity. (It’s the same reason we machine widened-journal crankshafts for our S54 builds.)

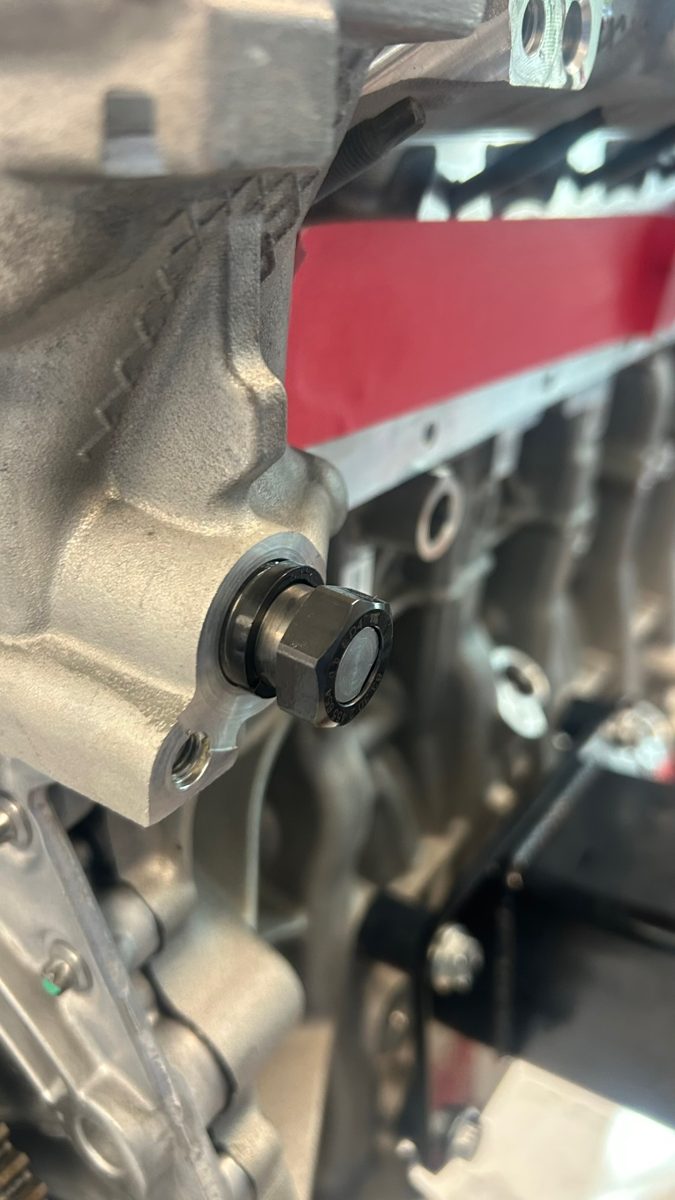

No crank hub problem. The S55’s notorious weakness is a single-center-bolt crank hub with no keyway — if it loosens, the engine jumps timing, and an entire aftermarket of crank-hub fixes exists because of it. On the S58, the timing gear teeth are machined into the crankshaft itself. Nothing to slip, no center bolt to fail; the timing drive sits at the transmission end and the nose carries a conventional four-bolt damper.

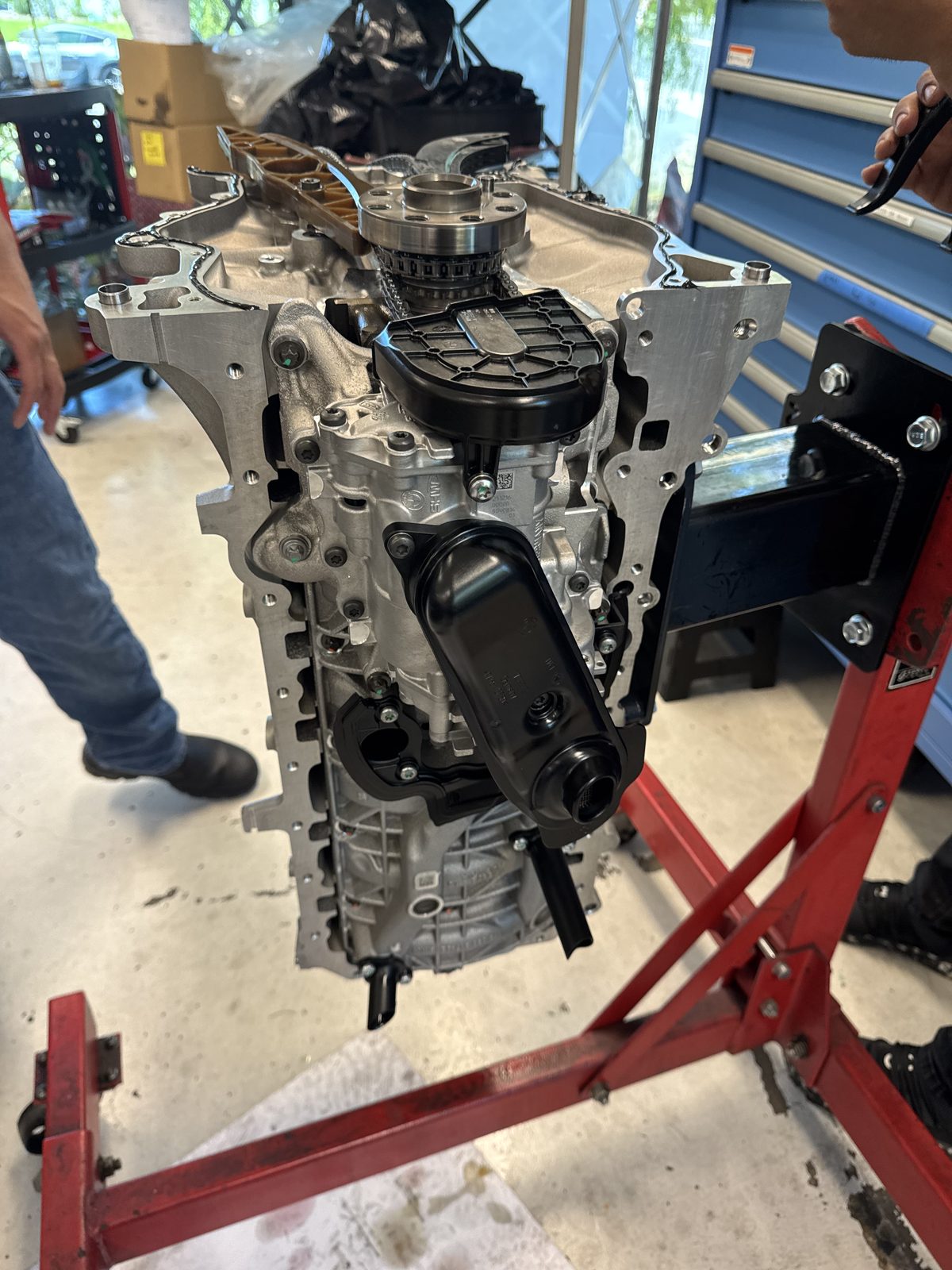

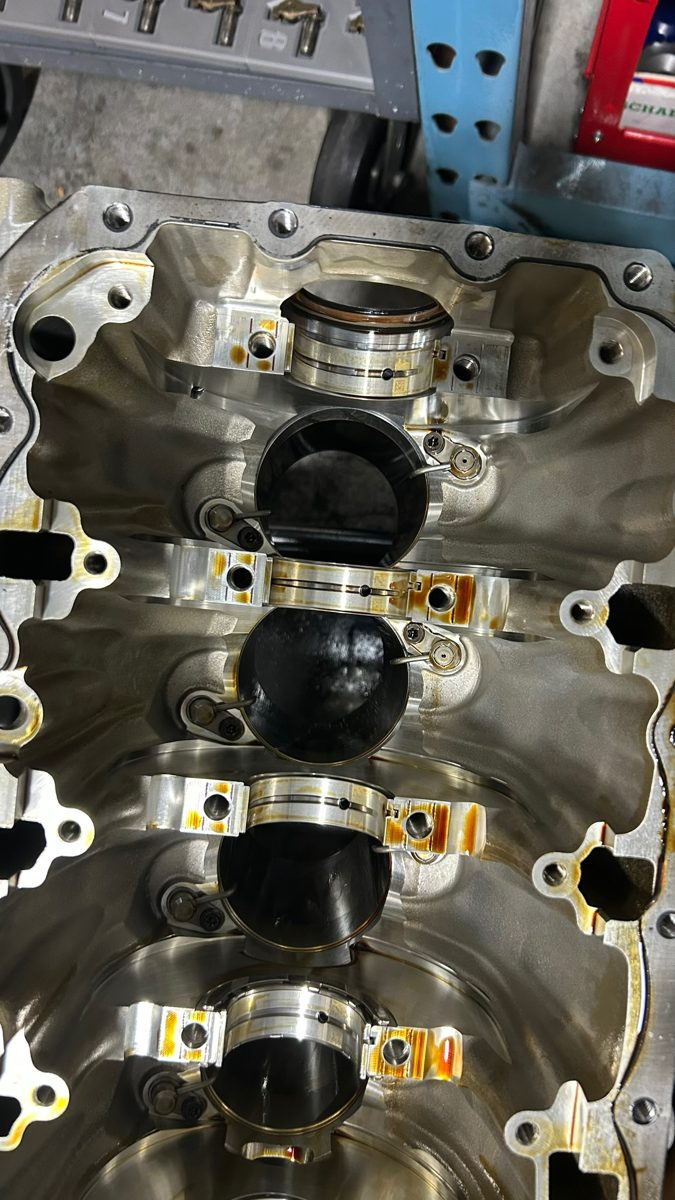

A stiffer bottom end. The S58 carries an integrated girdle across the main caps, tied into the oil pickup system — factory-built crankshaft and block stability of the kind the aftermarket used to fabricate for engines like the S54.

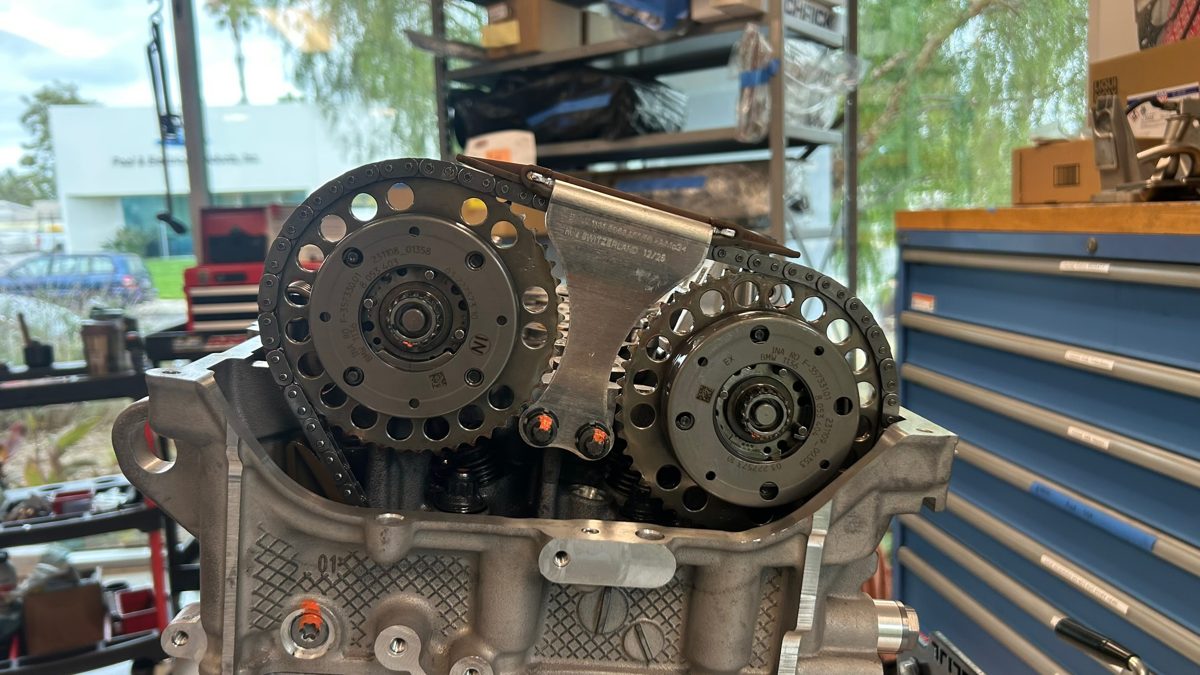

Lighter valvetrain drive. The VANOS gears are lighter than the S55’s, with lightening holes — less rotating mass in a system where we saw S55s struggle to hold timing.

Add skirt-coated factory pistons and two oil squirters per cylinder, and the S58 is a seriously well-engineered engine — which is exactly why it makes such a strong foundation for a reinforced build.

The head, and the part everyone underestimates: sealing

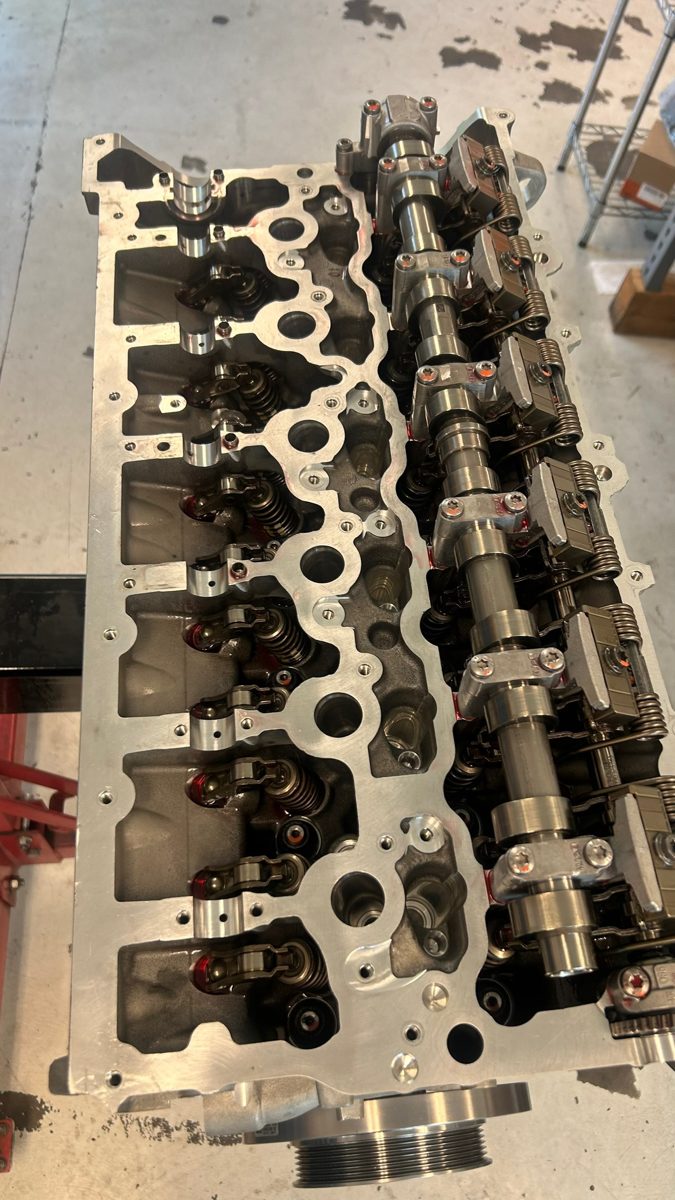

The head on this build is our Stage 1 — fully disassembled, cleaned, inspected and rebuilt to spec. This combination didn’t call for porting; on a boosted engine making power through pressure rather than flow velocity, spending money in the ports isn’t always where the return is.

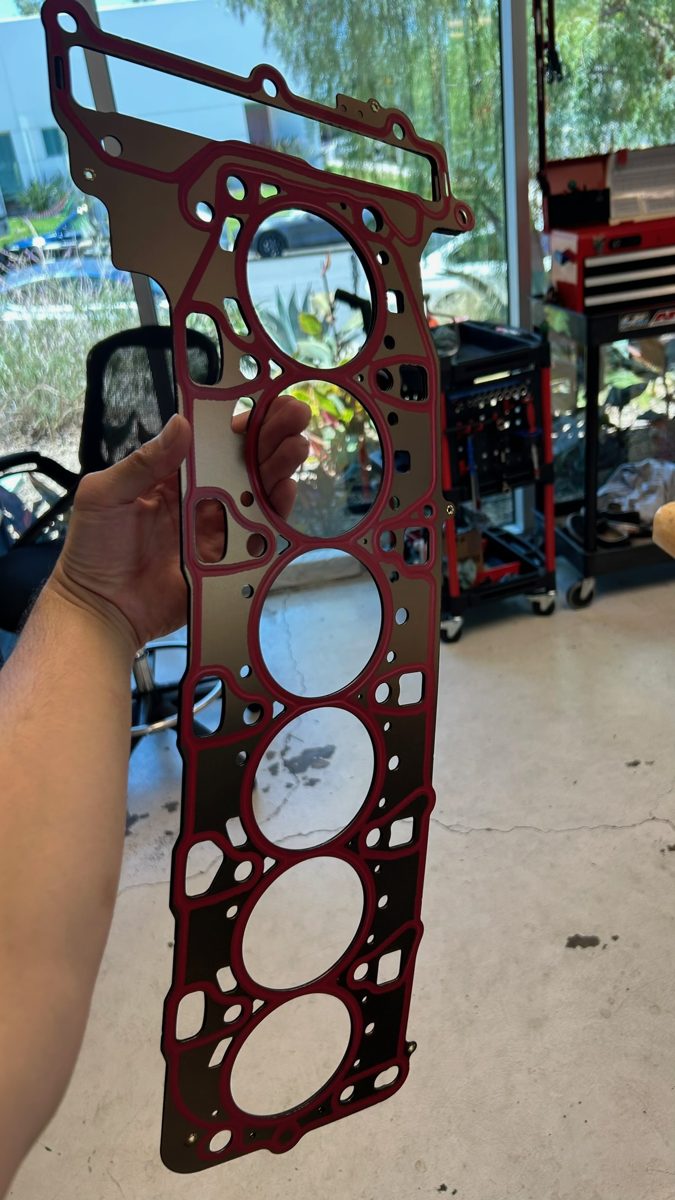

Sealing is the failure mode that catches people out at this power level. Cylinder pressure wants to lift the head off the block, and once combustion gases start working past the gasket, the engine is on a clock. That’s why this block got copper O-rings machined into the deck and ARP head studs — studs clamp more evenly and consistently than bolts that were engineered for factory output.

Break-in, done the right way (even when it's inconvenient)

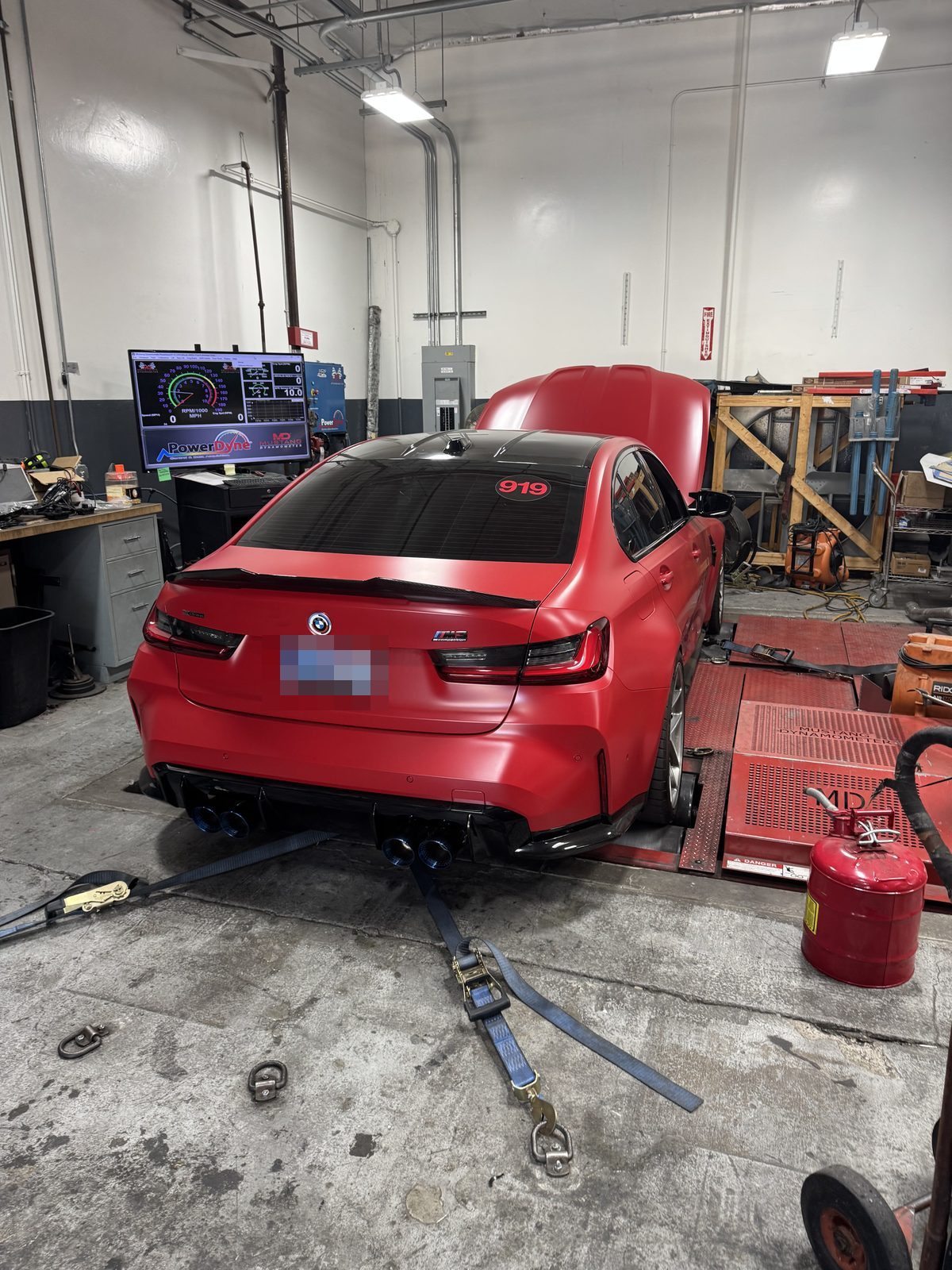

With the engine installed, we planned to validate it on our in-house Mustang dyno — and made a judgment call instead. An xDrive M3 loads the front rollers in a way that made strapping the car down genuinely unsafe, so rather than force it, Gabe ran the break-in on the road: progressive heat cycles, strict throttle discipline in the early hours, and miles accumulated exactly the way the driveline rebuilder’s procedure called for as well.

And here’s the part that surprises people: the car goes back to its owner with a completely stock calibration, port injection removed. We hand back a proven, healthy, leak-free engine on a known tune — then the owner’s tuner builds the power on top of a foundation that’s been measured every step of the way. We think that’s the only honest way to deliver a built engine.

Three to six months, one engine, one owner flying in

A build like this typically runs three to six months depending on parts availability — this one stretched toward the long end because good S58 cores are scarce for a platform this new. The owner is flying in from the middle of the country to collect it. That’s the shape of what we do more and more: it’s normal for cars to be sent to us from as far as the East Coast, because a shop that builds the engine, installs it, breaks it in, and proves it before handing back the keys is a rare thing.

The build, in a few more frames

Gabe photographed this engine throughout. A few more from the shop:
