Z3 rear subframe reinforcement — and the diff mount nobody thinks about

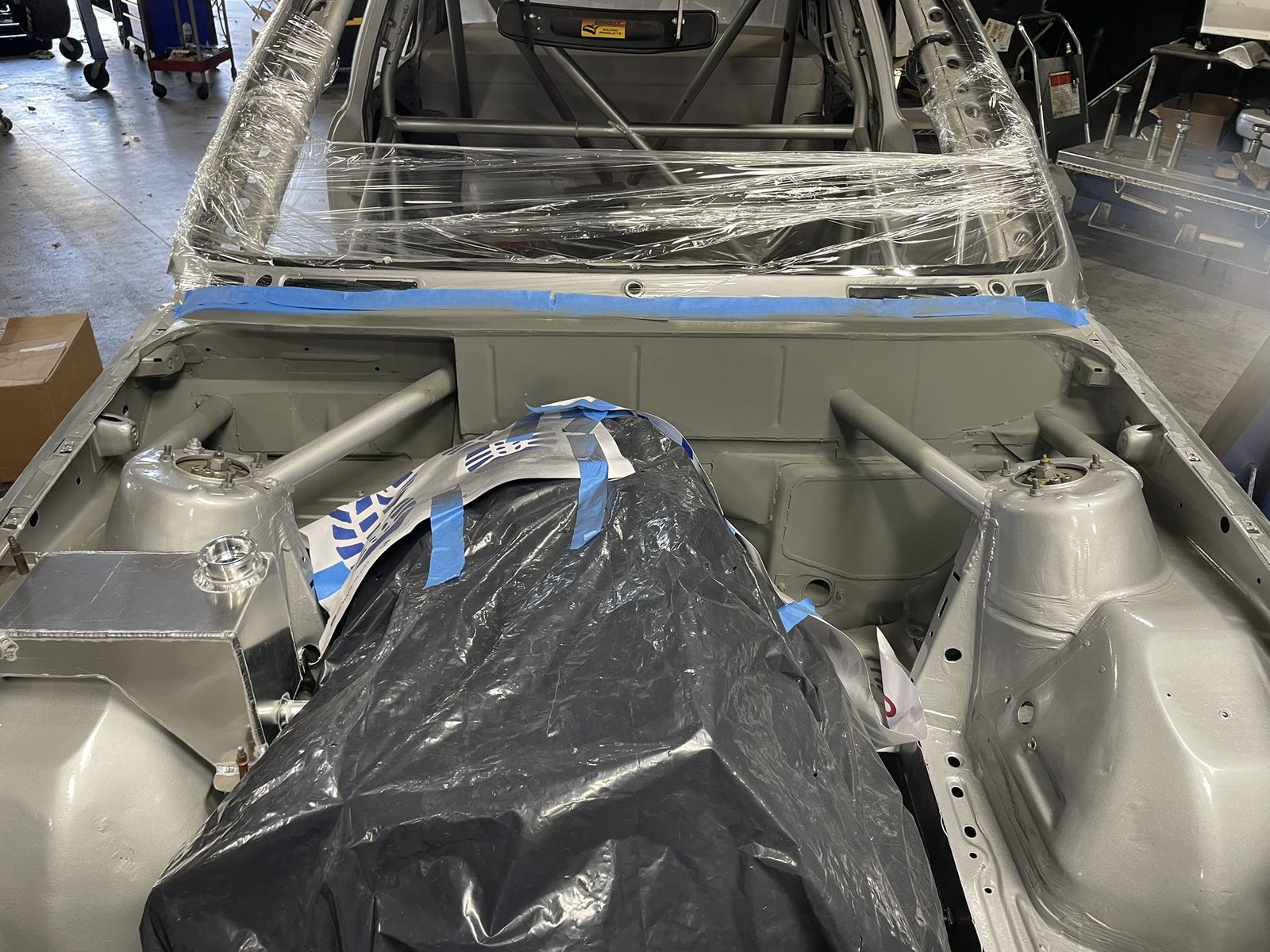

A customer brought us a Z3 2.8 that had been built into a track car — cage in, fuel cell fitted, interior stripped, coilovers on adjustable top mounts. It arrived that way; the build wasn’t ours. What it needed from us was the thing that eventually catches up with every hard-driven Z3: the rear end was starting to pull away from the floor.

There were already small cracks when it came in. Not catastrophic, and easy to miss if you weren’t looking. That is the useful part of this story, so it is worth explaining what is actually going on back there.

Why the Z3 rear end cracks

The Z3 is a newer shell wrapped around older rear suspension architecture — the rear end is derived from the E30. That is not a criticism on its own; the E30 layout is well understood and people have raced it for decades. The problem is what the Z3 does with the differential.

The diff hangs off the trunk floor, and the factory gives it surprisingly little structural support for the loads involved. Every time you get on and off the throttle, the diff tries to rotate, and that reaction torque has to go somewhere. On a Z3 it goes into a fairly ordinary piece of sheet floor and a row of spot welds.

Spot welds do not like being loaded in peel. They hold well in shear and poorly when something is trying to pry them apart, which is exactly what diff reaction torque does. So the welds start to let go, the brace begins to separate from the floor, and once that starts the crack walks along the seam. Leave it long enough and it stops being a mounting problem and becomes a torn trunk floor.

Add a track car’s duty cycle — repeated hard corner exits, kerbs, sticky tires putting more load in rather than letting the car slip — and the timeline shortens considerably.

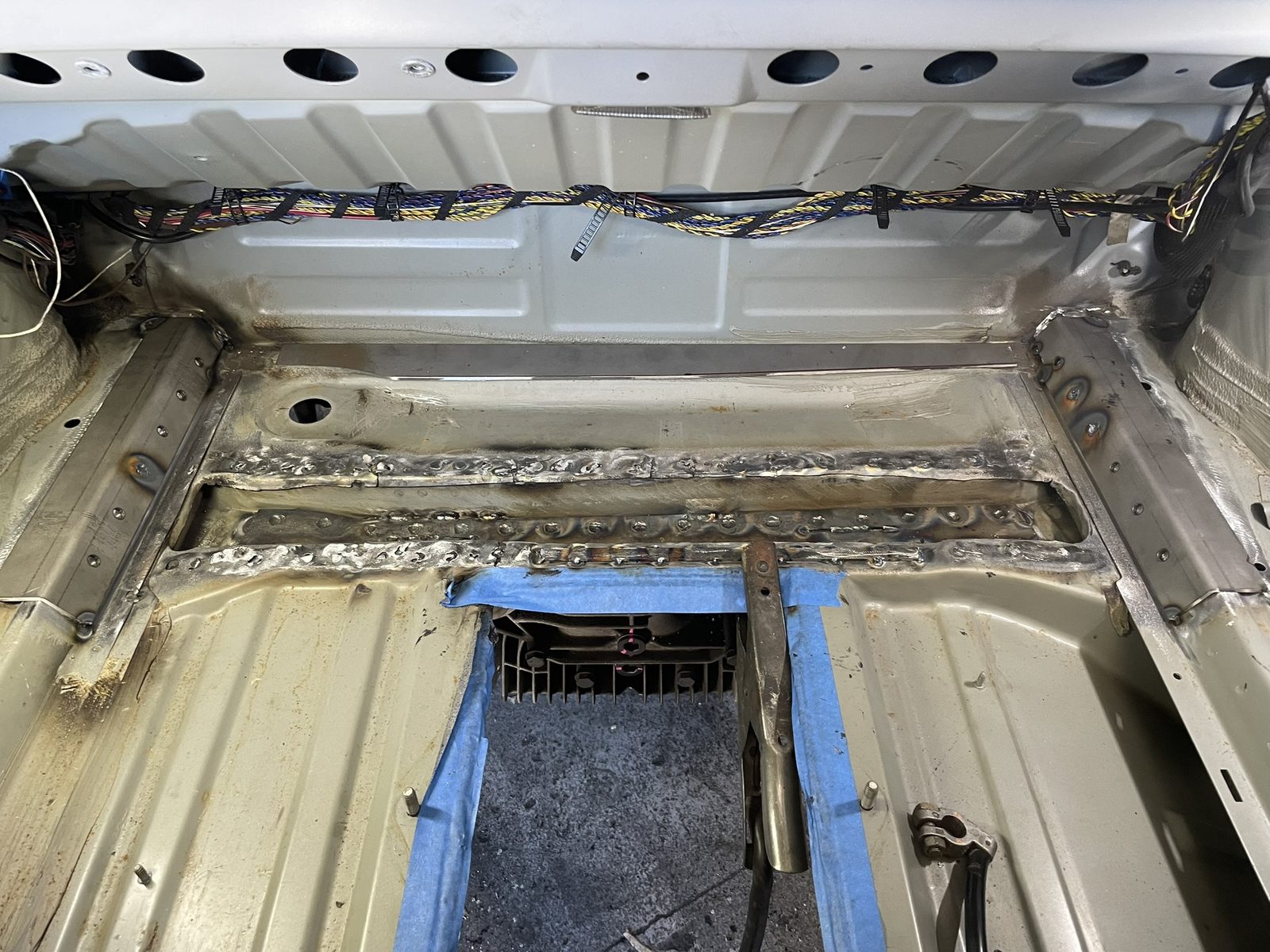

The car arrived caged and stripped, which at least made the floor easy to get at.

The Randy Forbes kit

We did not design a solution for this, and we are not going to pretend otherwise. There is already an accepted one.

The Randy Forbes reinforcement kit has been the standard fix on this chassis for years, and the Z3 community recommends it almost exclusively. It is one of those rare cases where the enthusiast world converged on a single answer and the answer turned out to be right. The kit spreads the diff and subframe loads across a much larger area of floor instead of concentrating them where the factory did, and it is designed specifically around how these cars fail rather than being a generic plate.

We used his kit on this car. If you own a Z3 and you are researching this, that is the one to look for — and full credit to Randy Forbes for solving a problem BMW left behind.

One honest caveat, which he says himself: this is not a driveway job. The kit comes as bare plate with instructions, and fitting it needs someone who can actually weld thin sheet metal without warping it. Get that wrong and you have moved the mounting points, which is the problem you were trying to fix.

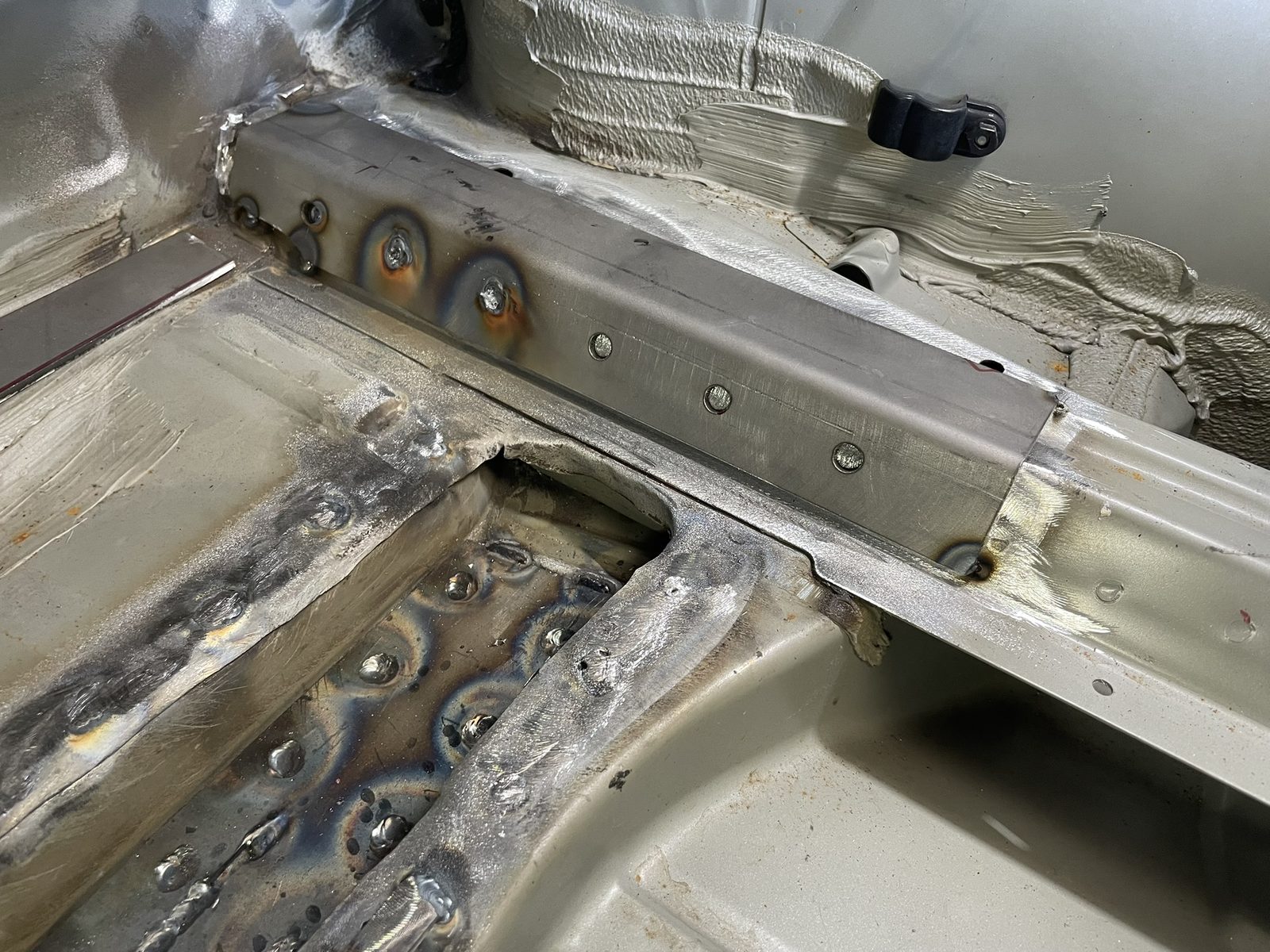

Plate welded along the rails, both sides. Short passes, spread out, so the floor stays where it started.

The other half of the fix: a diff cover with two mounting points

This is the part most write-ups skip, and it is arguably the more elegant half of the job.

The standard Z3 differential cover gives the diff a single rear mounting point. One point, carrying all of that reaction torque, feeding it into one small area of floor. Reinforce the floor and you have made the floor stronger — but you have not changed the fact that everything still funnels through one bolt.

So we replaced the cover with an E36 M differential cover, which has two mounting points instead of one. Now the load is split and fed into the structure at two separate places. Combined with the reinforcement plates underneath, the difference is not incremental — you have both strengthened the floor and stopped asking so much of any single part of it.

It is a good example of why the parts bin matters. Nothing exotic was fabricated here. BMW already made a better cover for a different car, and it bolts on.

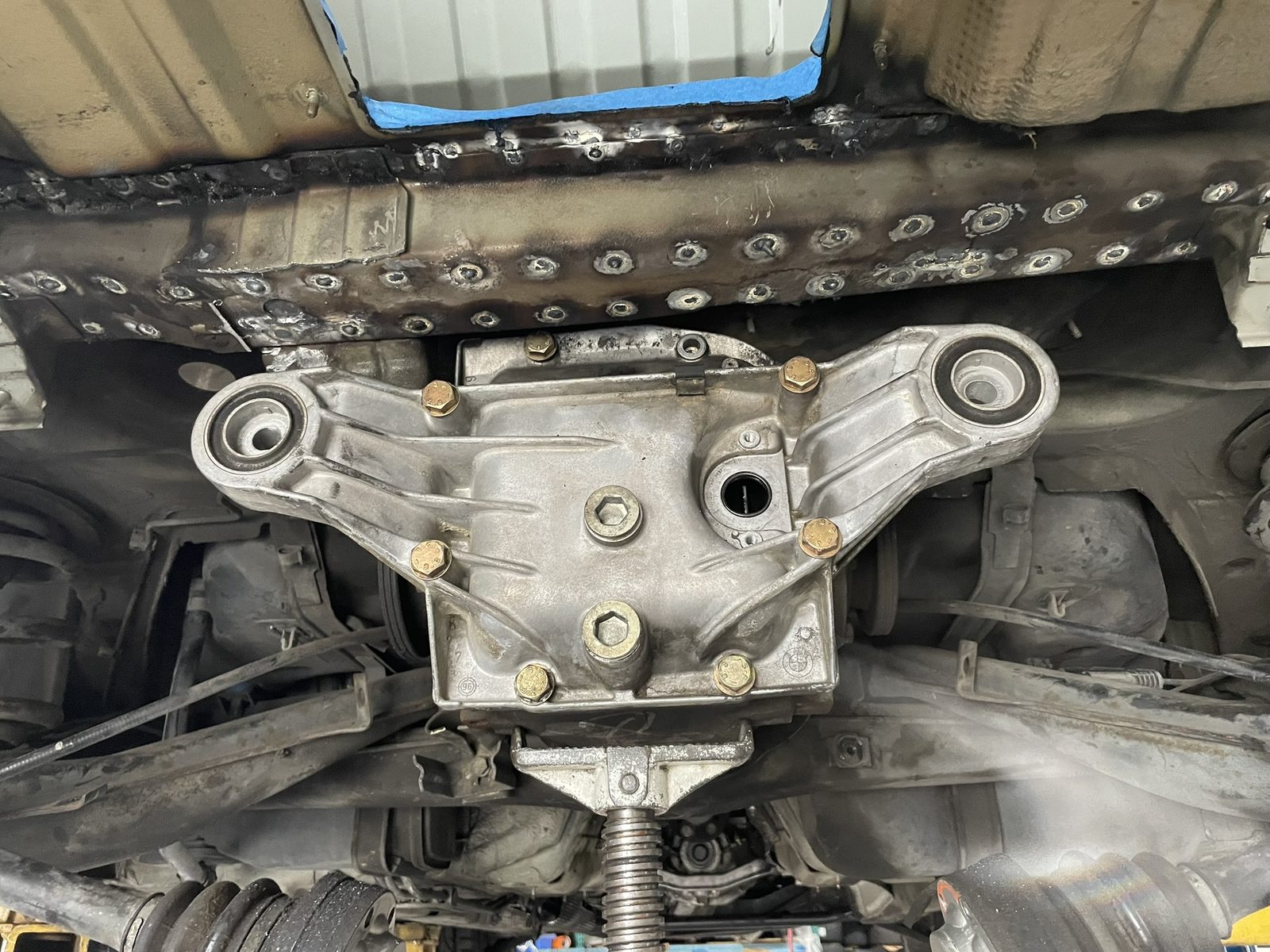

Cover off, and the mounting arrangement from underneath.

How to tell if yours is starting

The cracks on this car were small. That is normal, and it is why so many Z3s are further along than their owners realise. Get the car in the air and look at the rear floor and the diff mounting area properly — from underneath and, if the interior is out, from inside:

• Cracks along the seam where the rear brace meets the trunk floor. Clean the area first; undercoating and grime hide the early stages completely.
• Floor that looks lifted or peeled around the spot welds, as though the panel is separating rather than tearing.
• A clunk on throttle application or lift that does not trace to bushings, mounts or the driveshaft.
• Rear alignment that will not stay put between sessions with good bushings fitted.

If you track a Z3, this is worth checking now rather than after. The job is far cheaper as reinforcement than as floor repair, and the difference between the two is usually a season.
