Can the E46 handle a real rear coilover setup?

A customer came to us running an Intrax true rear coilover setup on an E46 M3. He wanted the rear shock towers reinforced and a rear strut brace welded in.

The short answer to the question in the title is: not without help. Here is why, and what we built.

What a “true” rear coilover actually changes

This is the part worth understanding before spending money either way.

From the factory, the E46 keeps the rear spring and the rear shock separate. The spring sits down on the trailing arm and carries the weight of the car into the chassis low down. The shock is just a damper — it controls movement, and the upper shock mount only ever sees damping loads.

A true rear coilover moves the spring onto the shock body. That is the whole point of the conversion: one assembly, corner-weight adjustable, ride height adjustable, far easier to set up properly.

But it also means the car’s weight now goes through the upper shock mount. A mounting point that was designed to resist damping forces is suddenly a primary structural load path, carrying static weight plus everything the suspension generates over a kerb.

The stock tower was never asked to do that. So it deforms, and then it cracks.

And then there is the S54’s torque

The rear shock towers are not the only thing under pressure back there.

Because of the torque the S54 makes, the rear differential is constantly pulling and twisting on the rear subframe mounts. Over time that can pull the mounts out of the sheet metal entirely — the same failure documented on the E46 rear subframe reinforcement page.

So a car in for shock tower work is almost always a car that should have its subframe mounts addressed at the same time. We reinforced those here as part of the job. It is also worth reinforcing both the top and the bottom mounting areas of the rear subframe rather than just the underside, which is the part people tend to reach for first because it is easier to get at.

Subframe mounts and shock towers reinforced together, because the loads are related.

The design — and why it is a compromise

We will be straight about this: the ideal answer here is a roll cage.

A properly designed cage ties the rear shock towers and subframe mounts into a structure that runs the length of the car, and there is nothing a bolt-in brace can do that competes with that. This owner did not have one and did not want one yet.

So the design distributes the vertical loads into vertical tubes running directly down to the rear subframe mounts, which were themselves reinforced at the same time. Instead of the shock tower trying to react load into thin roof-level sheet metal on its own, the load is fed down into a reinforced structural point.

There is a secondary benefit that comes free with the arrangement: it also distributes some of that load from one rear subframe point across to the other, rather than each side working alone.

We think this is about the best solution available short of a cage.

What we used

• 1/8″ cold rolled steel for reinforcing the shock towers and the rear subframe mounts.
• 4130 chromoly tube, 1.5″ diameter, 0.083″ wall for the bracing.

The tubing choice was driven by what the owner asked for: as light as possible while still adding real rigidity. Chromoly lets you run a thinner wall than mild steel for comparable strength, so a 0.083″ wall in 4130 gets the stiffness without the weight penalty of the equivalent in mild steel.

That is a deliberate trade, not a default. Thin-wall chromoly is less forgiving to weld and less tolerant of a bad repair later. On a car where the owner wants lightness and the fabrication is being done properly, it is the right call.

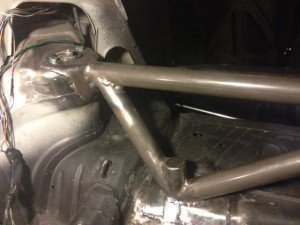

The brace welded in, with the vertical tubes feeding load down to the reinforced subframe mounts.

Built for a cage that does not exist yet

The other thing we designed around was the future.

We expected this owner might eventually want a full roll cage, so the structure was laid out with good nodes and attachment points to tie rear downtubes into when that day comes. Nothing here has to be cut out and redone.

That is worth asking for on any fabrication work of this kind. Bracing that ignores where a cage would go is bracing that gets removed later, and you will have paid for it twice.

So — can it handle it?

Yes, with the towers reinforced and the load fed somewhere sensible. No, if you bolt a true rear coilover onto an untouched shell and start using it.

If you are considering the conversion, factor the reinforcement into the budget from the start rather than discovering it after the first cracks appear. And if the car is an S54, plan on the subframe mounts at the same time.
