Bigger brakes on a 964 — and what they actually buy you

A customer brought us a 1990 Carrera 2 with a 3.8 in the back, eighteen-inch OZ wheels, and a complaint that took about four words: the brakes weren’t doing the job.

That is a common thing to hear about a 964 — a car we spend a fair amount of time with, including electric A/C conversions on the same generation — and it is usually true — but not for the reason most people assume. So before the parts list, the question worth answering.

“The stock brakes already lock the wheels. Why would I need bigger ones?”

It’s a fair challenge, and it comes up every time someone prices a big brake kit. If the brakes you have can already overwhelm the tires, more brake can’t make the car stop shorter. That much is correct.

But locking a wheel is a tire limit, not a brake limit, and it only tells you about one stop. Nobody has a braking problem on the first stop. The problem shows up on the sixth, or at the bottom of a long descent, or three laps into a session — when the pads are past their happy temperature, the fluid near the caliper is closer to boiling than anyone would like, and the rotor has nowhere left to put the heat it just absorbed.

A brake is an energy converter. It turns the car’s momentum into heat, and then it has to get rid of that heat before the next stop. When it can’t, the pedal goes long and soft and the car stops worse than it did cold. That is fade, and no amount of tire helps you.

So a bigger brake package buys three things, and none of them is a shorter first stop:

• Thermal mass. More iron in the rotor means more heat absorbed before the temperature climbs into trouble.
• Heat rejection. More disc area and more vane surface means it sheds that heat faster between stops.
• Leverage. A larger rotor puts the pad further from the wheel centre, so the same clamping force makes more braking torque — which means less pressure and less pad temperature for the same deceleration.

Put plainly: the honest promise of a big brake kit is that the tenth stop feels like the first. If you never make the tenth stop, you don’t need one. On a 3.8-powered 964 that gets driven on real roads, you do.

What we started with, and the reason the owner wanted more brake behind it.

What actually went on the car

Plus one-piece stainless braided lines, a replacement proportioning valve, pads and caliper brackets.

Here is the part that surprises people, and it is worth being straight about it. The front of this car gained no pistons at all. A 964 Carrera 2 left the factory with four-piston fixed calipers up front, and it now has four-piston calipers up front. Every bit of the front improvement comes from rotor diameter, rotor construction, pad compound and a firmer line — not from squeezing harder.

The rear is a different story. This car came with two-piston rear calipers, and it now has four. That is a genuine increase in rear clamping capability, and it has a consequence we will come back to.

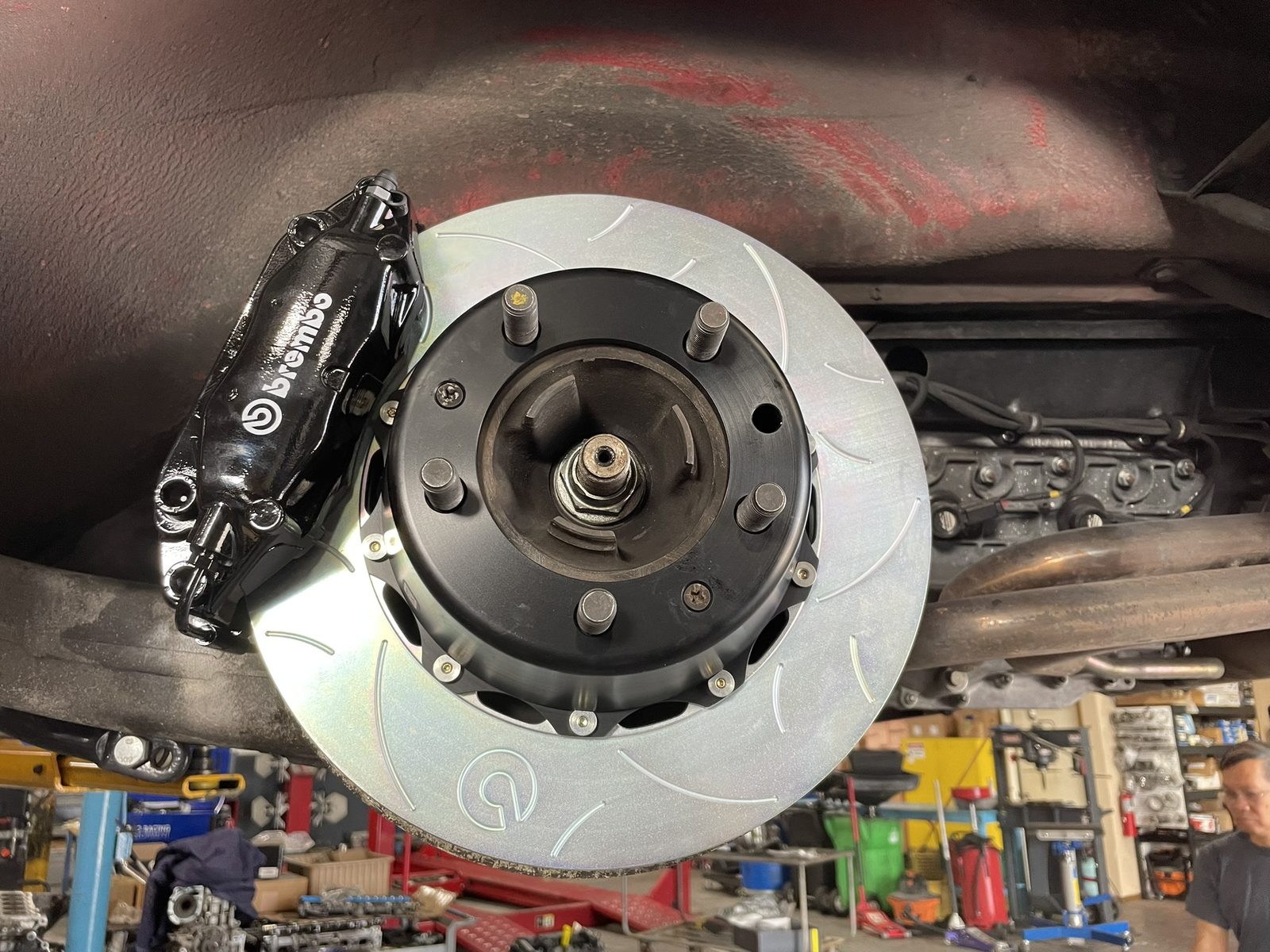

Two-piece slotted rotors on alloy hats, and the factory hardware that came off.

Check your build year before you order anything

This is the single most useful thing in this article if you own a 964, and almost nobody mentions it.

The Carrera 2 did not use the same rear brakes for its whole production run. Early cars — like this 1990 — have two-piston rear calipers. Later cars have four-piston rears. Brembo sells different rear kits for the two, because the bracket and the geometry have to suit what is already on the car. Ordering “a 964 rear kit” without knowing which rear caliper your car left the factory with is a good way to have the wrong parts arrive.

There is a second trap in the same family. If a 964 has been converted to 993-style front knuckles — a reasonably common modification — the 964 front kit no longer applies. Worth confirming before the box ships, not after.

Where it stopped being a bolt-on

Big brake kits are sold as bolt-on, and in fairness most of this one was. Three things weren’t.

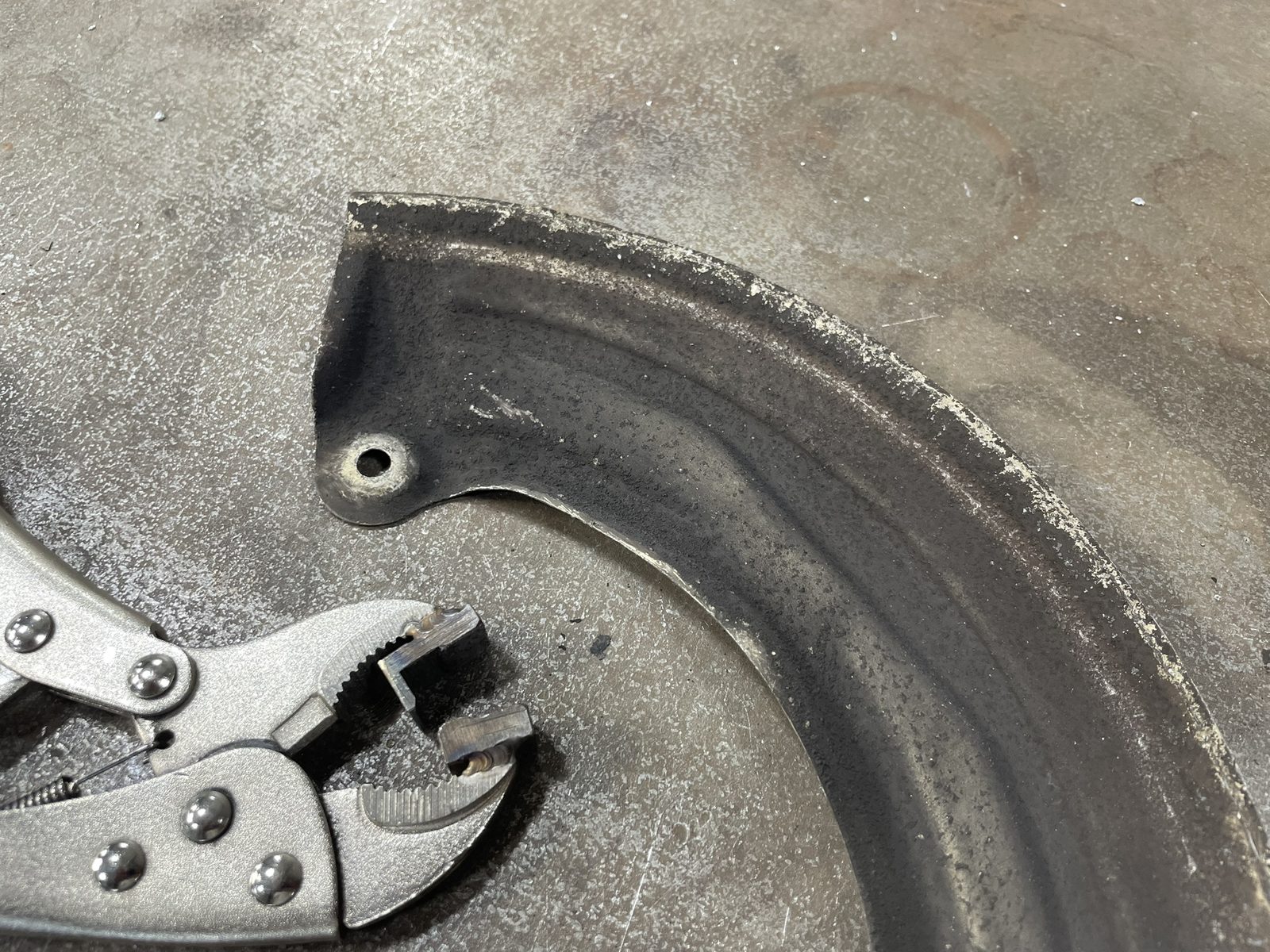

1. The dust shields fouled the rotors

A larger diameter rotor occupies space the factory shield was never asked to give up. The quick fix is to cut the shields off entirely, and plenty of cars run around without them. We’d rather not — they keep road debris and water off the disc face, and removing them is the kind of shortcut that looks fine until the first wet winter.

Instead the shield edges were flattened and drawn out to clear the new rotor, keeping the shield doing its job.

2. The brake line bracket had to be opened up

The kit’s stainless line is a single piece that replaces both the factory rubber flex hose and the hard line that ran from it to the caliper. That’s the better arrangement — one continuous line, no intermediate joint to weep, and a braided sheath that doesn’t balloon under pressure the way an old rubber hose does. Pedal feel improves for free.

The catch is that the factory bracket was sized for the factory fitting, not for a braided line passing through it. It had to be drilled out to suit, and a grommet fitted so the sheath isn’t sawing against a bare metal edge every time the suspension moves. A braided line will happily chafe through anything it’s allowed to rub on, including itself.

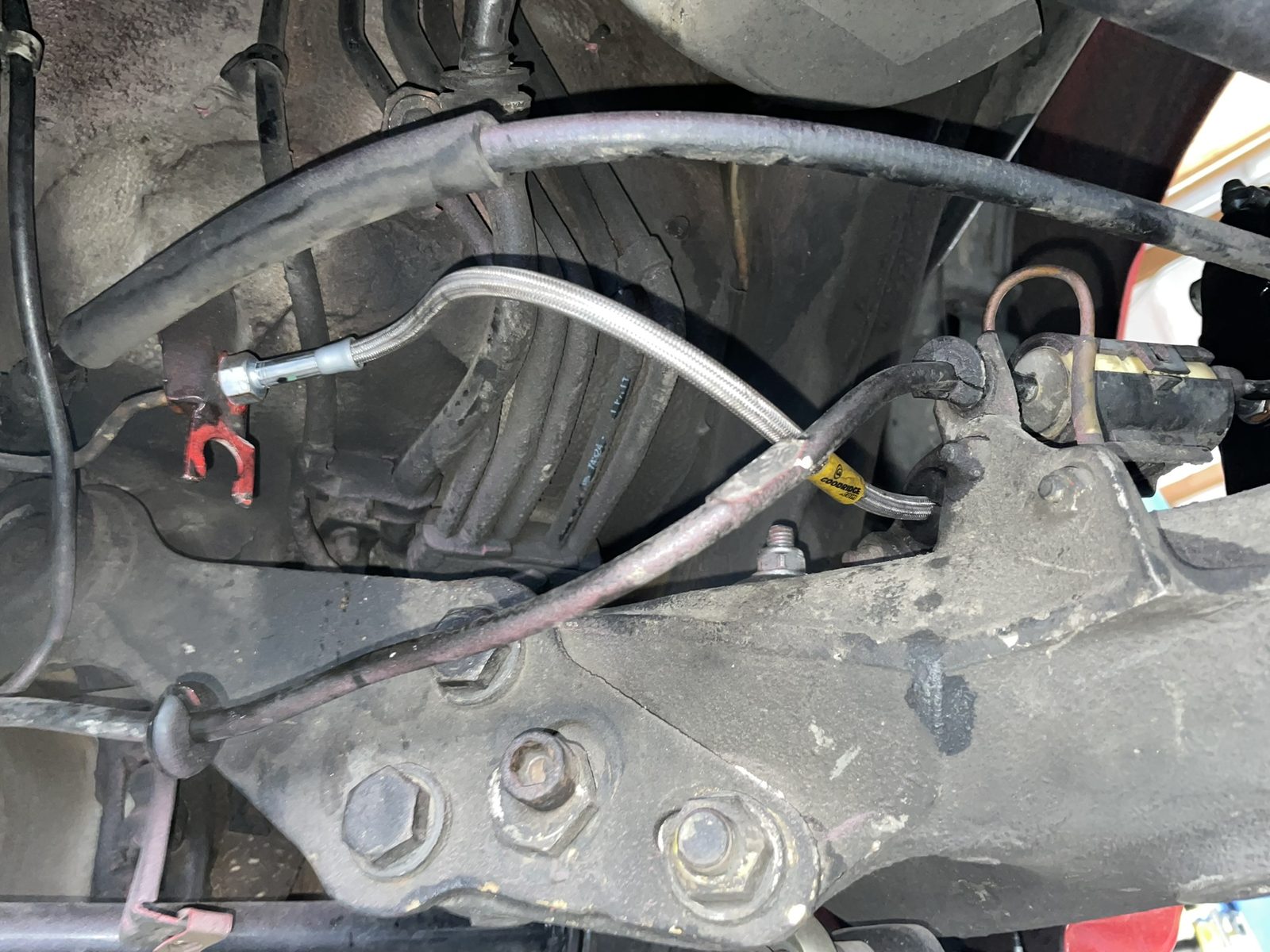

Factory line and bracket, then the one-piece braided replacement routed and secured.

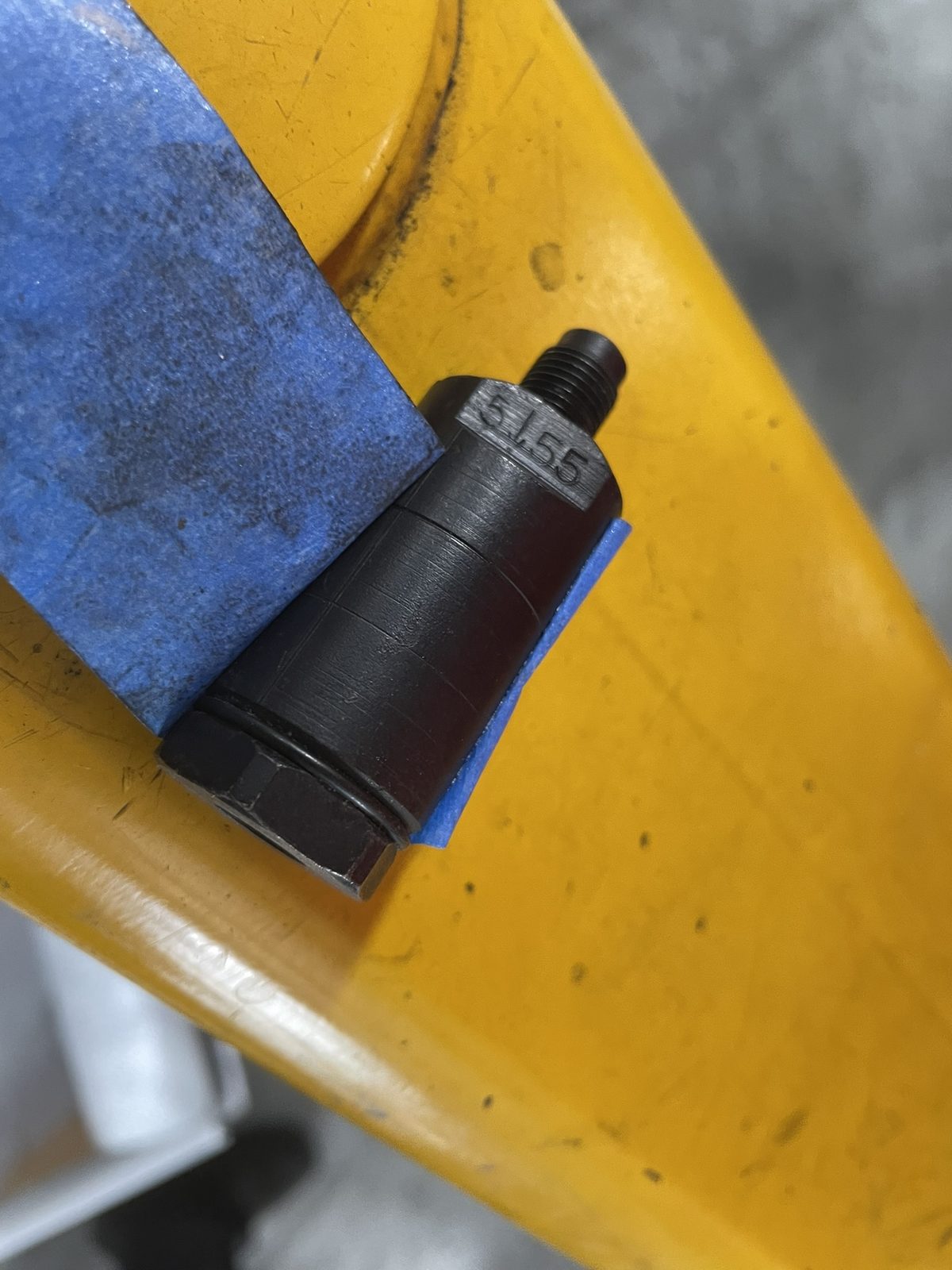

3. The proportioning valve had to change

This is the one that follows directly from the piston count, and it’s the reason the rear detail earlier matters.

Going from two rear pistons to four increases the piston area at the back of the car substantially. Feed that through the factory proportioning valve — which was calibrated for the brakes Porsche fitted — and the rear axle now does more of the braking than it was ever meant to. Rear bias is not a subtle handling preference on a rear-engined car. Over-braked rears step out under trailing brake, and they do it at exactly the moment you have the least appetite for a surprise.

So the factory valve came out and a replacement valved for the new piston areas went in. It’s a small, unglamorous part that no one photographs for a build thread, and skipping it would have made the car worse than it was before.

Assembly, fluid and bedding

The rest was methodical rather than interesting. Rotors are front and rear specific and side specific — the slots have a direction, and fitting a pair backwards is an easy, embarrassing mistake. Brackets torqued to spec, calipers hung, pads in, fresh fluid and a full bleed at every corner.

Then bedding, which people skip and shouldn’t. New pads need a transfer layer deposited evenly onto a new rotor face before the system will do what it’s capable of, and a pad that gets one hard stop while cold will glaze or leave an uneven deposit you then feel as a shudder for the rest of its life. Brembo’s procedure is a series of moderate decelerations from around 60 to 10 mph to build temperature progressively, then firmer stops once everything is hot, then a cool-down without sitting on the pedal at a standstill.

Finally a road test — ABS behaviour under a hard stop, stability in a straight line, and confirmation that the car isn’t leaning on the rear axle.

Installed, and clearing the eighteen-inch OZ wheels without spacers.

What the owner actually got

A firmer pedal from the braided lines, and brakes that behave the same on the last stop of a canyon run as they did on the first. Not a shorter emergency stop from cold — the Michelins decide that, and they always did.

If that sounds like a modest claim, it is meant to. Big brake kits get sold on stopping distance, which is mostly the tire’s job, when what they genuinely deliver is consistency and heat tolerance. On a car with a 3.8 in the back that gets driven hard, consistency is the thing worth buying.
